Abstract
Mono-spaced Bold
To see the contents of the filemy_next_bestselling_novelin your current working directory, enter thecat my_next_bestselling_novelcommand at the shell prompt and press Enter to execute the command.
Press Enter to execute the command.Press Ctrl+Alt+F2 to switch to a virtual terminal.
mono-spaced bold. For example:
File-related classes includefilesystemfor file systems,filefor files, anddirfor directories. Each class has its own associated set of permissions.
Choose → → from the main menu bar to launch Mouse Preferences. In the Buttons tab, select the Left-handed mouse check box and click to switch the primary mouse button from the left to the right (making the mouse suitable for use in the left hand).To insert a special character into a gedit file, choose → → from the main menu bar. Next, choose → from the Character Map menu bar, type the name of the character in the Search field and click . The character you sought will be highlighted in the Character Table. Double-click this highlighted character to place it in the Text to copy field and then click the button. Now switch back to your document and choose → from the gedit menu bar.
Mono-spaced Bold Italic or Proportional Bold Italic
To connect to a remote machine using ssh, typessh username@domain.nameat a shell prompt. If the remote machine isexample.comand your username on that machine is john, typessh john@example.com.Themount -o remount file-systemcommand remounts the named file system. For example, to remount the/homefile system, the command ismount -o remount /home.To see the version of a currently installed package, use therpm -q packagecommand. It will return a result as follows:package-version-release.
Publican is a DocBook publishing system.
mono-spaced roman and presented thus:
books Desktop documentation drafts mss photos stuff svn books_tests Desktop1 downloads images notes scripts svgs
mono-spaced bold and the output of a command in mono-spaced roman. Examples:
0 root@cl-head ~ #echo "I'm executed by root on a head-node"I'm executed by root on a head-node
0 root@beo-01 ~ #echo "I'm executed by root on a compute node"I'm executed by root on a compute node
0 root@sn-1 ~ #echo "I'm executed by root on a storage node"I'm executed by root on a storage node
0 user@workstation ~ $echo "I'm executed by user admin on the admins workstation"I'm executed by user admin on the admins workstation
mono-spaced roman but add syntax highlighting as follows:
package org.jboss.book.jca.ex1;
import javax.naming.InitialContext;
public class ExClient
{
public static void main(String args[])
throws Exception
{
InitialContext iniCtx = new InitialContext();
Object ref = iniCtx.lookup("EchoBean");
EchoHome home = (EchoHome) ref;
Echo echo = home.create();
System.out.println("Created Echo");
System.out.println("Echo.echo('Hello') = " + echo.echo("Hello"));
}
}
Note
Important
Warning
qlustar-docs@qlustar.com to report errors or missing pieces in this documentation.

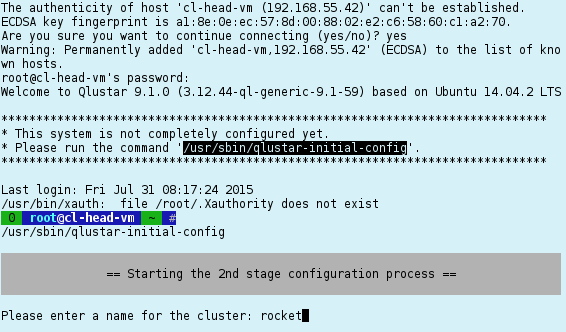

0 root@cl-head ~ #/usr/sbin/qlustar-initial-config
keep the local version currently installed.
Remaining configuration steps run-through
Cluster name

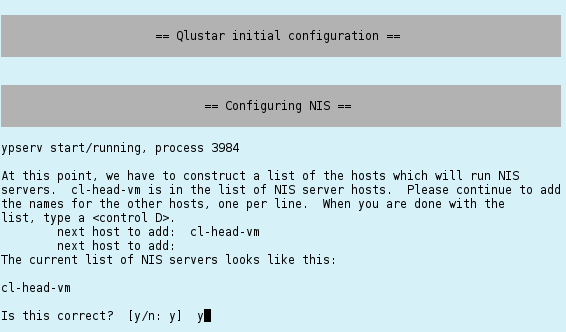

NIS Setup

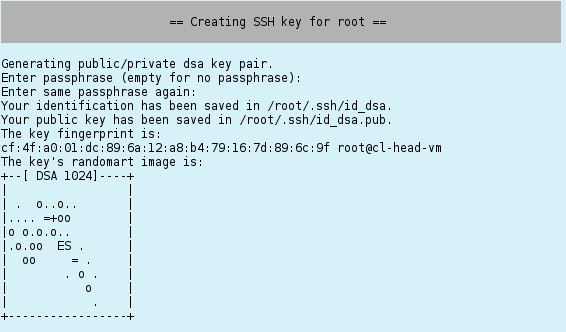

Configuring ssh
Note

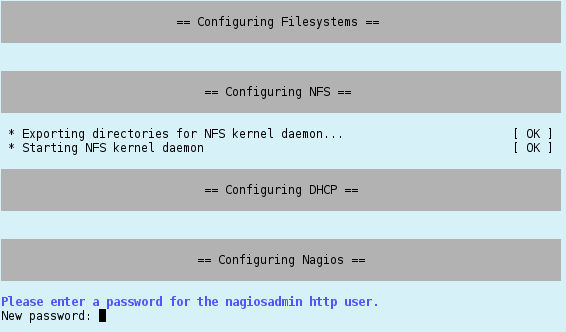

Configuring Nagios

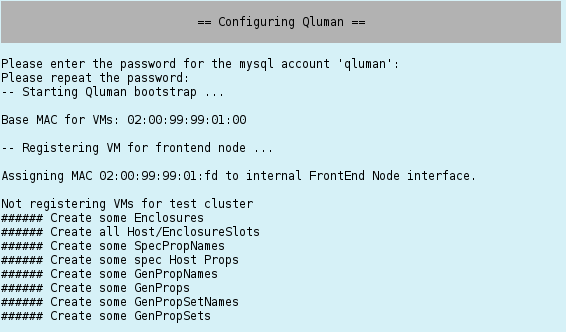

Configuring QluMan

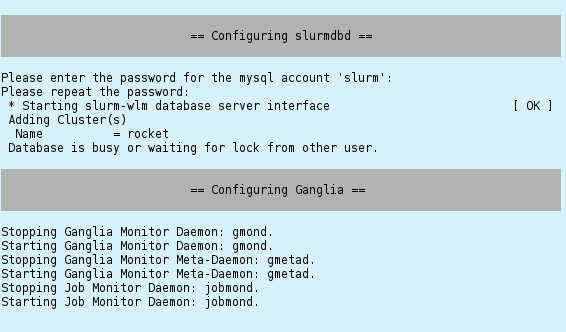

Configuring Slurm
Note

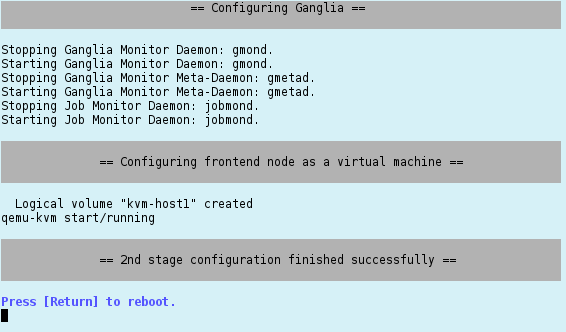

Configuring the virtual Demo Cluster
Setting the MariaDB root password
/etc/aliases and/or /etc/postfix/main.cf. In case some of them are wrong, you can execute
to modify them.0 root@cl-head ~ #dpkg-reconfigure postfix
and to stop it0 root@cl-head ~ #demo-system-start
These commands use the configuration file0 root@cl-head ~ #demo-system-stop
/etc/qlustar/vm-configs/demo-system.conf. If you find that the (automatically calculated) amount of RAM per VM is not right, you can change the variable CN_MEM to some other value in that file. The consoles of the virtual nodes (and also of the virtual front-end node if you chose to set one up) are accessible in a screen session. Type
to attach to the console session of the virtual FE node and0 root@cl-head ~ #console-fe-vm
to attach to the console sessions of the virtual demo cluster nodes. Note that the screen command character is Ctrl-t. To detach from the screen session, type Ctrl-t+d, to switch to the next/previous screen type Ctrl-t+n / Ctrl-t+p. More details on the usage of screen (or byobu, the Debian customized version we use) are available in the corresponding0 root@cl-head ~ #console-demo-vms
man pages. To check whether all nodes are up and running, type
0 root@cl-head ~ #dsh -a uptime
dsh or pdsh can be used to execute arbitrary commands on groups of nodes. Check their man pages and the corresponding section in the QluMan guide for further information.
nagiosadmin with the password you specified previously.
/etc/exports
Note
/srv/apps/chroots/chroot name, where chroot name would be e.g. bionic or centos7. Each of them contains a full-featured installation of the corresponding Qlustar edge platform. To change into a chroot, convenience bash shell aliases of the form chroot-chroot name are defined for the root user on the head-node. You may use them as follows:
Once you're inside a chroot, you can use the standard Debian/Ubuntu tools to control its software packages, e.g.0 root@cl-head ~ #chroot-bionic
(bionic) 0 root@cl-head ~ #apt update(bionic) 0 root@cl-head ~ #apt dist-upgrade(bionic) 0 root@cl-head ~ #apt install package(bionic) 0 root@cl-head ~ #exit
Once you're inside a chroot, you can use the standard CentOS tools to control its software packages, e.g.0 root@cl-head ~ #chroot-centos7
(centos7) 0 root@cl-head ~ #yum update(centos7) 0 root@cl-head ~ #yum install package(centos7) 0 root@cl-head ~ #exit
Note
/etc/yum.repos.d:
Important
The token can also be saved directly to a file using the0 root@cl-head ~ #qluman-cli --gencertGenerating one-time login token for user 'admin': Cluster = QL Hostname = beosrv-c Port = 6001 Pubkey = b'T)5o]@hsjB2qyY>eb:7)8@BA?idMf>kh%^cRhV/#' Enter new pin for one-time token: Server infos and one-time login token for user 'admin': ---[ CUT FROM HERE ]--- 00000191c2MAAcMuyCNQR0DPILx-y-BLCHpITepvG7R3I6452Cdqiu98u4PsM1VWFGqEAG V8YN9K5kyJKHtQHGTB1JqZIwt4q0PLArnyNmhCkGLS6VxWWBDtBB9_dGPqLH4OeQ7sZ725 6XDGgrKo4Dldc_wuCALegczjYV8oc_yZ07X0oIYlzhDlDpk-hTm5bfW8_x904YF0wcv-G- nK1ztRg854O7pC_p1YpEJuzWFqWv0e7ffi-ZgkxwfdGGKF3imp4d9yGY4h6Ixdn8TLG2gk Z4XQ4dymvSO9hp8mUabfq7prVUOTYeChB2pOrom8XSQxjOoe4Yll5yv6da_CdGq50KrO8Q C12Z4Pz2eSbvqXbo7c7DdLRjMc0v0Km3WyljgdsDYbKC5iT75Bgryc ---[ TO HERE ]---
-o <filename> option. The user the token is for can be specified by the -u <username> option like this:
The server infos and one-time login token are protected by the pin you just entered. This is important when the data is sent via unencrypted channels (e.g. email or chat programs) to users or when it is stored on a shared filesystem like NFS. The pin does not need to be a strong password. It is only used to make it non-trivial to use an intercepted token.0 root@cl-head ~ #qluman-cli --gencert -u admin -o tokenGenerating one-time login token for user 'admin': Cluster = QL Hostname = beosrv-c Port = 6001 Pubkey = b'T)5o]@hsjB2qyY>eb:7)8@BA?idMf>kh%^cRhV/#' Enter new pin for one-time token: Server infos and one-time login token for user 'admin' saved as 'token'
Note
Then you can launch qluman-qt remotely on the head-node, per ssh (with X11 forwarding enabled /0 root@cl-head ~ #apt install qluman-qt
-X option) as follows:
This should bring up the Management Console. Using the one-time token generated as explained above, you will now be able to add the cluster to the list of available connections. (Details about this are explained in the QluMan Guide).0 user@workstation ~ $ssh -X root@servername qluman-qt
apt sources list. This can be accomplished by executing the following as root on your workstation.
The second one should have imported the Qlustar PGP archive key, and must output a line like:0 root@workstation ~ #dpkg -l software-properties-common > /dev/null 2>&1 || apt install software-properties-common0 root@workstation ~ #gpg --no-default-keyring --primary-keyring /etc/apt/trusted.gpg --recv-keys E6BA110F3C0BC307
gpg: key 3C0BC307: public key "Q-Leap Networks (automatic archive key) <info@q-leap.com>" imported
Note
Ubuntu/Bionic execute:
After this you can install qluman-qt the usual way:0 root@workstation ~ #add-apt-repository 'deb http://repo.qlustar.com/repo/qluman 11.0-bionic main non-free'0 root@workstation ~ #add-apt-repository 'deb http://repo.qlustar.com/repo/qluman 11.0-bionic-proposed-updates main non-free'
0 root@workstation ~ #apt update0 root@workstation ~ #apt install qluman-qt
Note
universe repository enabled in your apt sources list for the above command to succeed.
0 user@workstation ~ $qluman-qt &
$HOME/qluman-11.0.0.16-singularity.sqsh):
You can view the changelog of the QluMan version inside the container by executing the following command:0 user@workstation ~ $sha256sum $HOME/qluman-11.0.0.16-singularity.sqsh0 user@workstation ~ $chmod 755 $HOME/qluman-11.0.0.16-singularity.sqsh0 user@workstation ~ $$HOME/qluman-11.0.0.16-singularity.sqsh
0 user@workstation ~ $singularity exec $HOME/qluman-11.0.0.16-singularity.sqsh \ zless /usr/share/doc/qluman-qt-11/changelog.gz
Important
The behavior of the adduser.sh script can be customized in its configuration file0 root@cl-head ~ #adduser.sh -u test -n "Test User"
/etc/qlustar/common/adduser.cf. It also contains the definition of the initial default user password.
On CentOS, you need to activate the correct compiler and openmpi stack from OpenHPC first via the modules infrastructure0 testuser@cl-front ~ $mpicc.openmpi-gcc -o hello-world-c hello-world.c0 testuser@cl-front ~ $mpif90.openmpi-gcc -o hello-world-f hello-world.f90
After this you should have created two executables. Check it with0 testuser@cl-front ~ $module load openmpi3/3.1.4 gnu8/8.3.00 testuser@cl-front ~ $mpicc -o hello-world-c hello-world.c0 testuser@cl-front ~ $mpif90 -o hello-world-f hello-world.f90
Now we're prepared to test the queuing system with these two programs.0 testuser@cl-front ~ $ls -l hello-world-?
This will run the job interactively on 2 nodes with 2 processes each (total of 4 processes). You should obtain an output like this:0 testuser@cl-front ~ $salloc -N 2 --ntasks-per-node=2 --mem=20 -p demo srun hello-world-c
salloc: Granted job allocation 3 Hello world from process 1 of 4 Hello world from process 2 of 4 Hello world from process 3 of 4 Hello world from process 0 of 4 salloc: Relinquishing job allocation 3 salloc: Job allocation 3 has been revoked.
hello-world-f90-slurm.sh (to check the output, execute cat slurm-<job#>.out after the job has finished):
0 testuser@cl-front ~ $sbatch -N 2 --ntasks-per-node=2 --mem=20 -p demo hello-world-f90-slurm.sh
alias to see what's available. They are defined in $HOME/.bash/alias. Example submission (assuming you have 4 running demo nodes):
Check that the job is started (output should be similar):0 testuser@cl-front ~ $linp-4-demo-nodes
Now ssh to one of the nodes in the0 testuser@cl-front ~ $squeueJOBID PARTITION NAME USER ST TIME NODES NODELIST(REASON) 27 demo linstres test R 2:46 4 beo-[201-204]
NODELIST and check with top that Linpack is running at full steam, like:
You can check the output of each Linpack run in the files:0 testuser@beo-201 ~ $topPID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ COMMAND 18307 test 20 0 354m 280m 2764 R 100 28.0 6:42.92 xhpl-openblas 18306 test 20 0 354m 294m 2764 R 99 29.3 6:45.09 xhpl-openblas
$HOME/bench/hpl/run/job-<jobid>-*/openblas/job-<jobid>-*-<run#>.out where <jobid> is the slurm JOBID (see the squeue command above) and <run#> is an integer starting from 1. The way the script is designed, it will run indefinitely, restarting Linpack in an infinite loop. So to stop it, you need to cancel the job like
0 testuser@cl-front ~ $scancel <jobid>
